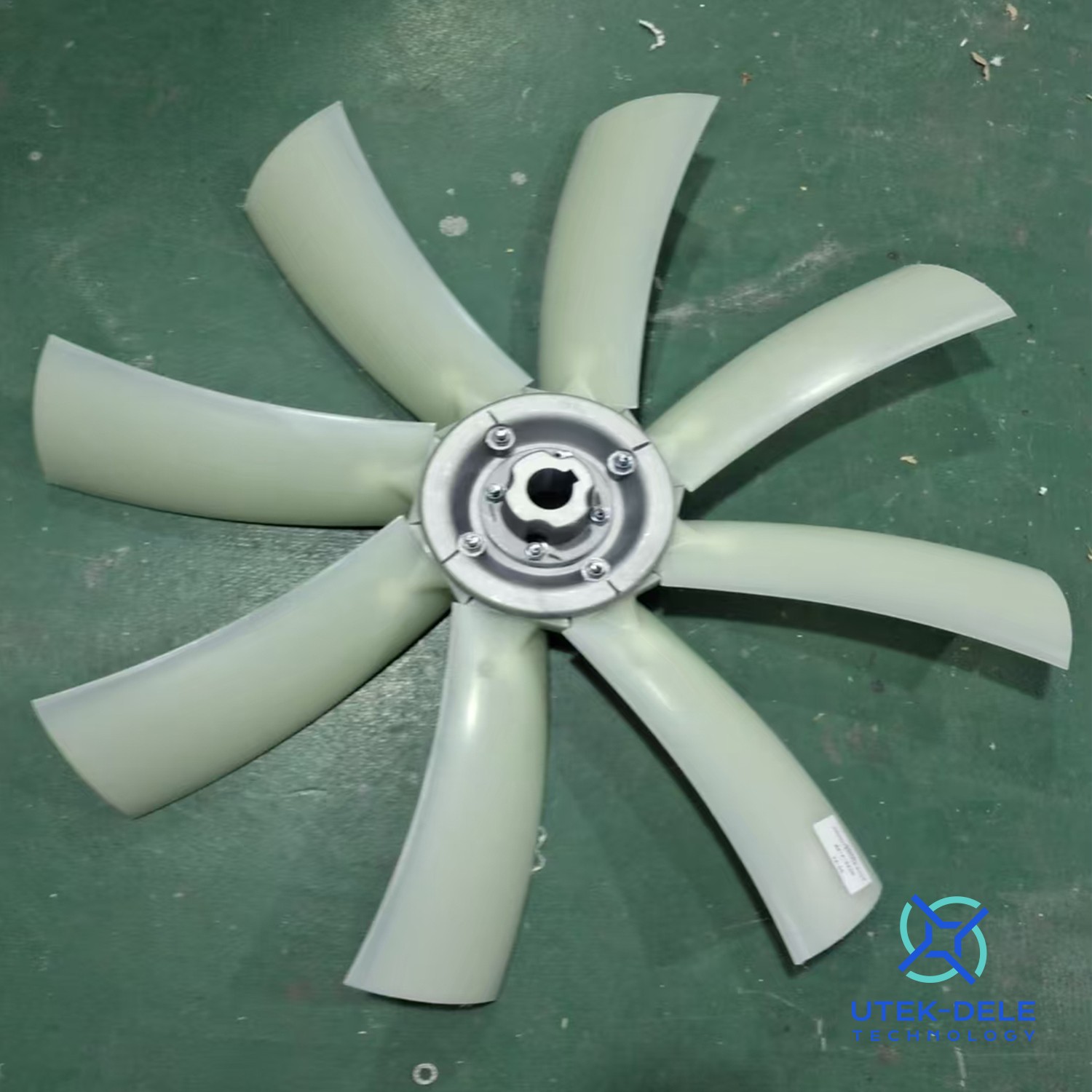

The S16H fan series is engineered to excel in applications where space is at a premium, offering exceptional performance in compact cooling packages. Its lightweight sickle blade design and optimized profile deliver high airflow and static pressure, even in cramped engine bays found in modern tractors, municipal vehicles, pavers, and compactors.
Introduction ▼
The S16H fan series is engineered to excel in applications where space is at a premium, offering exceptional performance in compact cooling packages. Its lightweight sickle blade design and optimized profile deliver high airflow and static pressure, even in cramped engine bays found in modern tractors, municipal vehicles, pavers, and compactors.
Features:
Ultra-Compact Design: Fits seamlessly into tight spaces while meeting stringent regulatory requirements
High Efficiency: Delivers superior cooling performance at lower rotation speeds, reducing noise emissions and fuel consumption

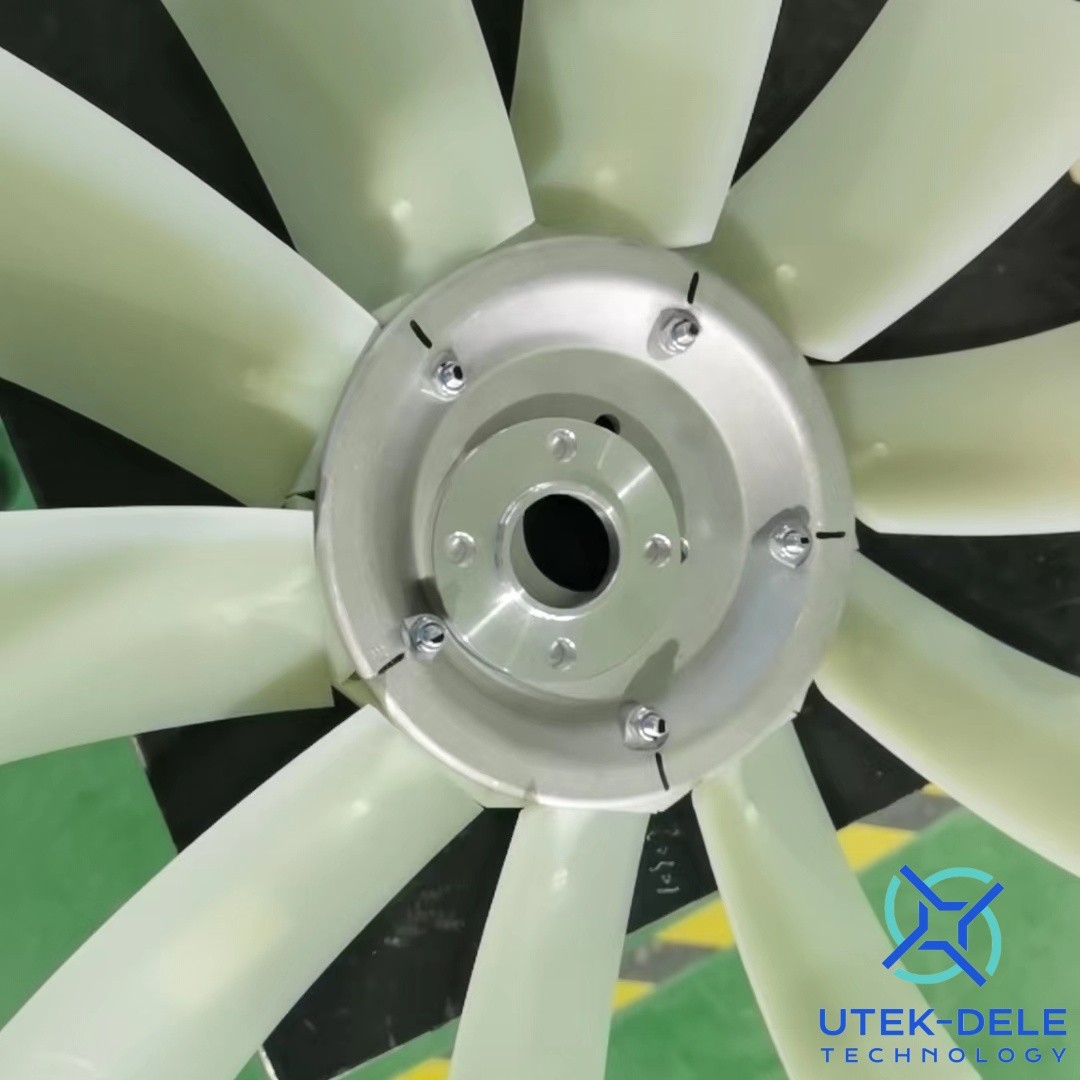

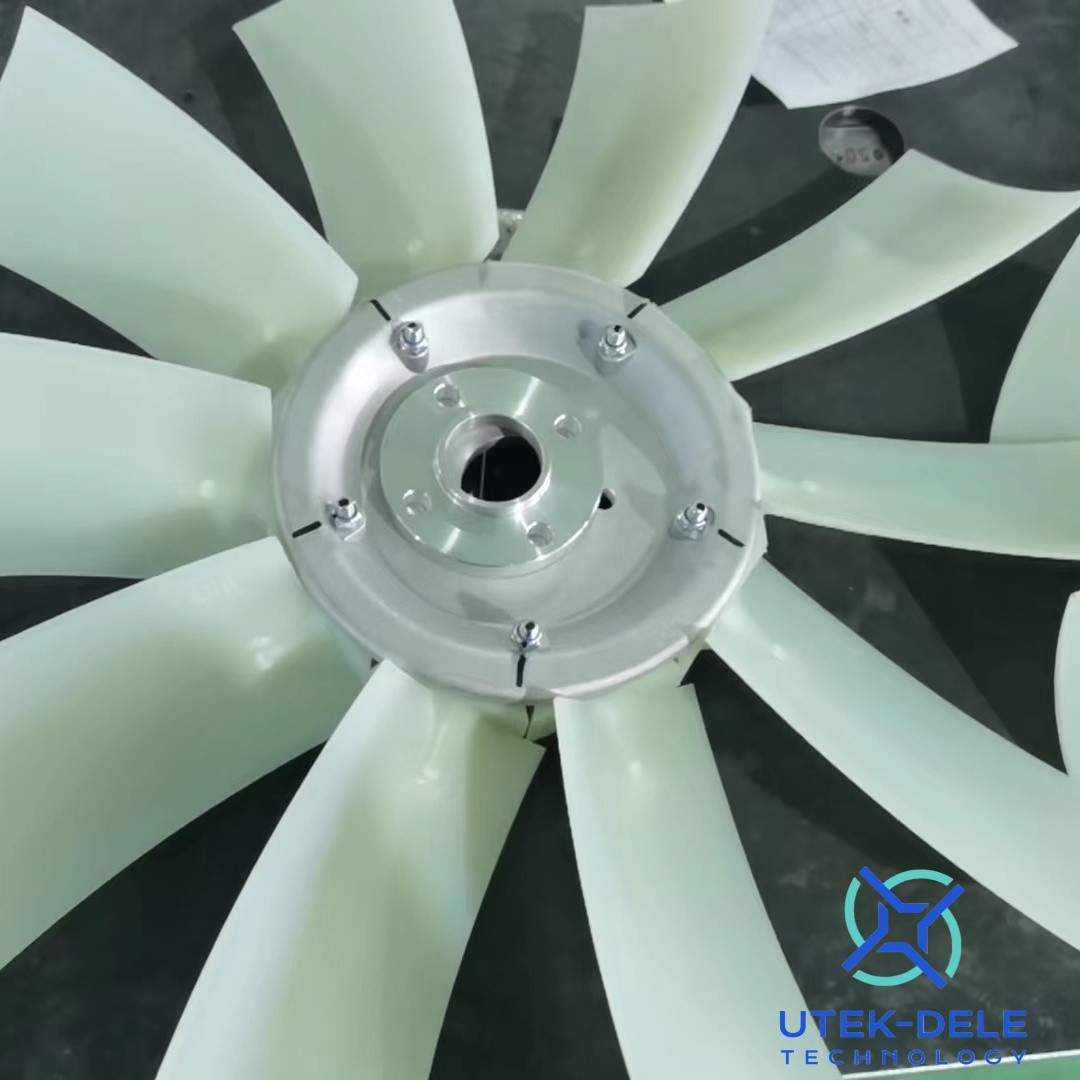

Versatile Configuration: Available in multiple hub sizes (3-14) with maximum diameters from 627mm to 805mm, including clutch-compatible options
Durable Construction: Features high-quality PAG/PAGAS blade material for reliable operation
H type hub ▼
Hub type | Weight | Diameter |
HUB H-6 | 0.27kg/set | 96mm |
HUB H-8 | 0.41kg/set | 133mm |
| HUB H-10 | 0.57kg/set | 172mm |
| HUB H-12 | 0.805kg/set | 206mm |
| HUB H-14 | / | 242mm |
Material of Blade ▼
Symbol | Material | Temperature Range | Characteristic | Application |
PAG | PA6+GF30 （30% glass fiber reinforced ） | -40℃-110℃ | Anti-aging | Heavy load |
PAGAS | 15% carbon fiber+15%fiberglass +PA6 | -30℃-100℃ | Resistance Conductivit | Explosive danger |
ALU | Die-cast aluminum alloy ADC12 | -40℃-150℃ （It can withstand up to 300°C/2h） | Fire resistance Large temperature range | High temperature |
Video ▼
Drawings ▼

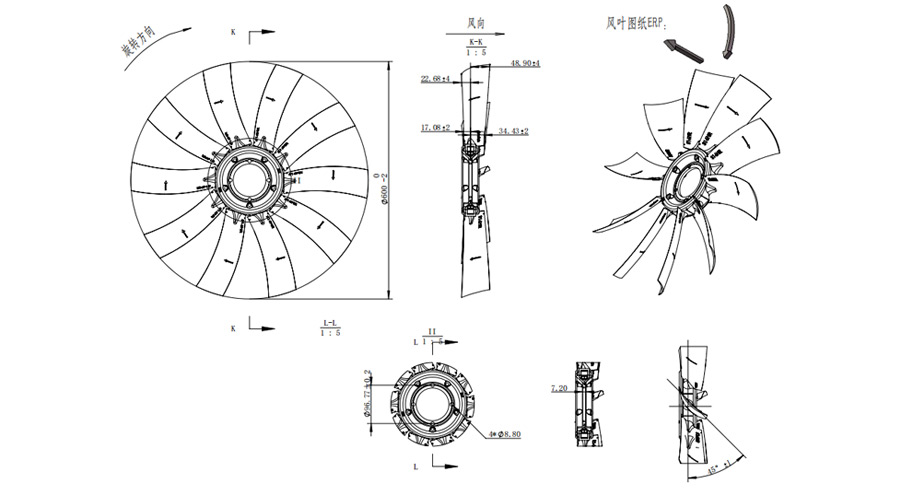

Fan drawing:600_10-10_S16HR_45_PAG_82.6_4-8.8_BC96.77

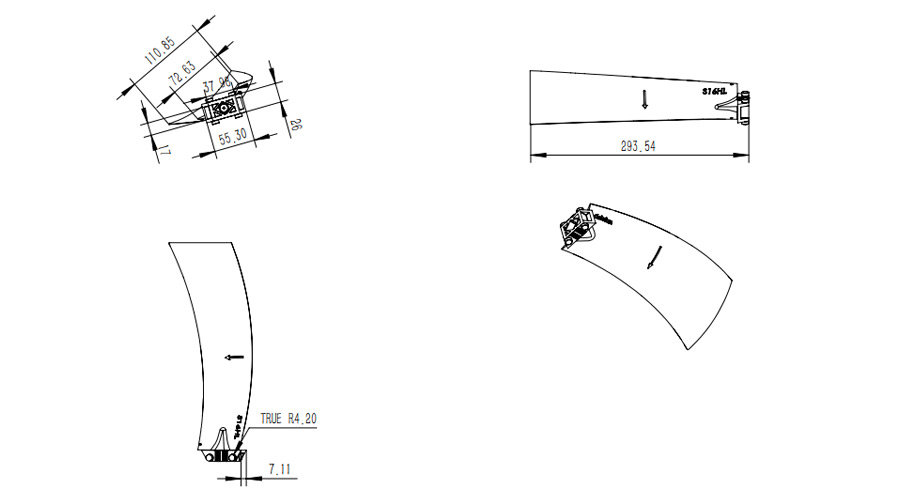

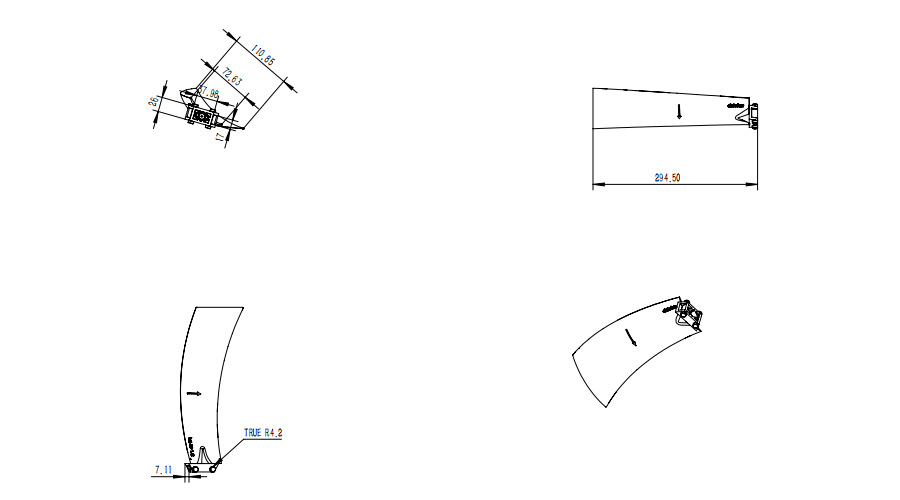

S16HL blade drawing
S16HR blade drawing
If you want to customize or learn more fan parameters, don't hesitate, contact us now!
Factory Showcase ▼
 |  |  |
 |  |  |

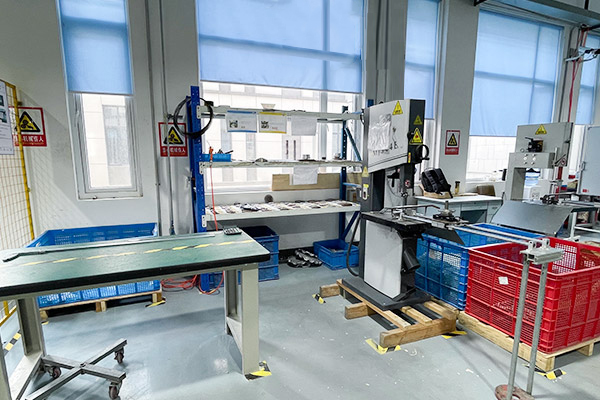

Production Equipment ▼

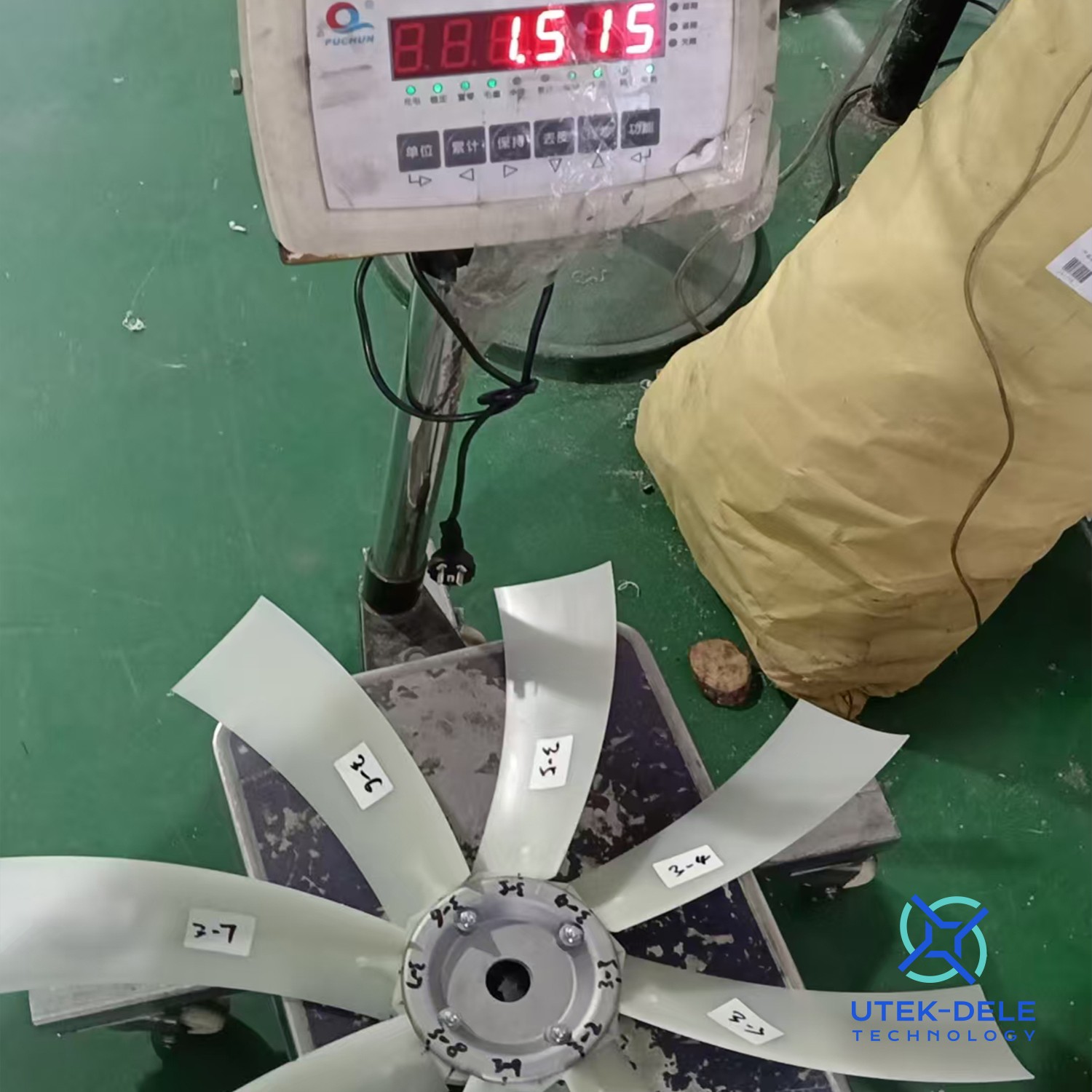

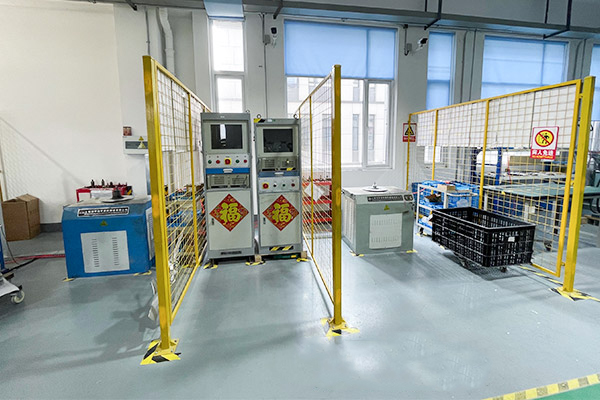

 Dynamic Balancing Equipment |  Dynamic Balancing Equipment |  Dynamic Balancing Equipment |
 Cutting Machine Equipment |
|  Wind Tunnel Laboratory |
Factory Certificate ▼
 Patent Certificate |  Patent Certificate |  Patent Certificate |  ISO9001:2015 |  ISO14001:2015 |
Material Certification ▼
 UV Resistance Report |  Changzhou Explosion-proof Type Report |  PAG Material Fire Proof |
Materials Certificate of Analysis |  PAGAS BLADE COA |

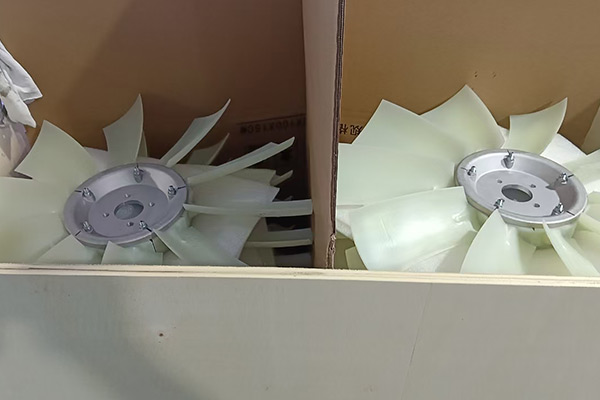

Packaging & Shipping ▼
 |  |  |
 |  |  |
FAQ ▼
Q: Are almost all fans replaceable?A: Yes.
Q: Can they be fitted?A: We can machine the connection holes and bushings, so they can definitely be fitted.
Q: Is it safe to use?A: We will balance and match the angle to the power speed.
Q: Is it possible to replace only the blades?A: No problem, the design is exactly the same.
